Petrotrim Services LLC
Established in 2009, Petrotrim Services LLC provides engineering, design, documentation, and technical support services for the oil and gas industry. Backed by over 30 years of industry experience, we specialize in:
• API 6A Pressure-Control Equipment
• API 16A Drilling Well Control Equipment
• API 16C Choke & Kill Systems
• API 17D Subsea Wellhead & Tree Equipment
• Engineering Design & Product Development
• Reverse Engineering & Manufacturing Drawings
• Technical Specifications, Procedures & Quality Documentation
• Design Verification & Engineering Calculations
API 6A • API 16A • API 16C • Design Services
Petrotrim Services provides complete engineering, design, documentation, and technical support services for pressure-control and subsea equipment. Our design packages are developed in accordance with the latest applicable editions of API, ASME, ASTM, and NACE standards and are tailored to customer requirements, manufacturing capabilities, and project specifications.
Services We Provide
• API 6A Pressure-Control Equipment
- Gate valves
- Slab gate valves
- Expanding gate valves
- Check valves
- Choke valves
- Wellhead equipment
- Christmas tree equipment
- Flanges and pressure-containing components
• API 16C Choke & Kill Equipment
- Choke manifolds
- Choke assemblies
- Pressure-control components
- Skid-mounted process equipment
- Flow control equipment
• API 17D Subsea Equipment
- Subsea gate valves
- Choke valves
- Connectors and adapter components
- Pressure-containing equipment
- Subsea production equipment documentation
• Engineering & Design
- New product development
- Equipment upgrades and redesigns
- Reverse engineering
- Legacy drawing conversion
- Manufacturing support
- Design optimization
• Engineering Calculations
- Wall thickness calculations
- Pressure containment analysis
- Sealing force calculations
- Stem thrust calculations
- Closure bolting calculations
- Flange design verification
- Load and stress calculations
- Design verification reports

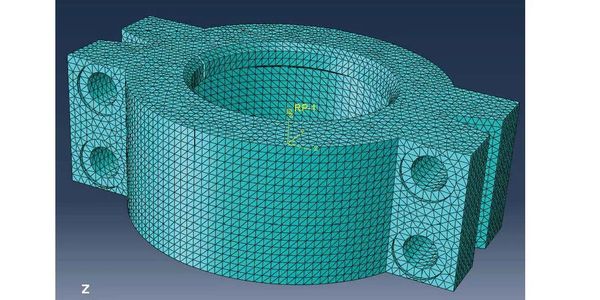

• Finite Element Analysis (FEA)
- Pressure loading analysis
- Stress analysis
- Deflection analysis
- Structural verification
- Design optimization
• Material Engineering
- Material selection and specification
- API 6A material class compliance
- NACE MR0175 / ISO 15156 reviews
- Sour service evaluations
- Material equivalency assessments
• Manufacturing Documentation
- General arrangement drawings
- Manufacturing drawings
- Assembly drawings
- Exploded views
- Bill of Materials (BOM)
- Dimensional control drawings
- Tolerance and GD&T application
• Quality & Technical Documentation
- Product specifications
- Material specifications
- Inspection & Test Plans (ITPs)
- Hydrostatic test procedures
- Gas testing procedures
- PR2 validation documentation
- Engineering procedures
- NDE procedures
- Product data books
• API Q1 Support
- Engineering procedures
- Design control documentation
- Technical specifications
- Manufacturing procedures
- Audit support documentation
.jpeg/:/rs=w:600,cg:true,m)
Engineering & Technical Support Services
Petrotrim Services provides engineering, design, documentation, and technical support for API 6A, API 16C, and API 17D equipment.
Our Capabilities Include:
• Engineering Calculations & Design Verification
• Finite Element Analysis (FEA)
• Manufacturing Drawings & 3D Models
• Material Selection & Specifications
• Reverse Engineering & Product Development
• API Q1 Documentation & Quality Support
• Inspection & Test Plans (ITPs)
• Technical Specifications & Procedures
• Manufacturing & Assembly Documentation
• Customer-Ready Design Packages
Supporting manufacturers, service companies, and operators with practical, manufacturing-ready solutions focused on quality, compliance, and reliability.
Gate Valve, Check Valve & Choke Valve Design Services
Our Design Capabilities Include:
• Manual and Hydraulic Gate Valve Design
• Check Valve Design and Verification
• Choke Valve and Flow Control Equipment Design
• Pressure Ratings up to 20,000 psi
• Sour Service and NACE-Compliant Applications
• High-Temperature and Corrosive Service Conditions
• Tungsten Carbide, Inconel, and Specialty Trim Designs
• API 6A, API 16C, and API 17D Compliance Support
Engineering Deliverables
• Engineering Calculations & Design Verification
• Pressure Containment & Wall Thickness Analysis
• Stem Thrust & Closure Bolting Calculations
• Finite Element Analysis (FEA) When Required
• 3D Models and Manufacturing Drawings
• Assembly Drawings & Bills of Material
• Material Specifications & Technical Documentation
• Inspection & Test Plans (ITPs)
Complete engineering packages developed for manufacturing, customer review, qualification, and production support.
Exploring PETROTRIM SERVICES - A Photo Journey Through the Oil and Gas Industry
MS CHECK VALVE
API GATE VALVE
TEE'S AND CROSS'S
MS CHECK VALVE POPPET
